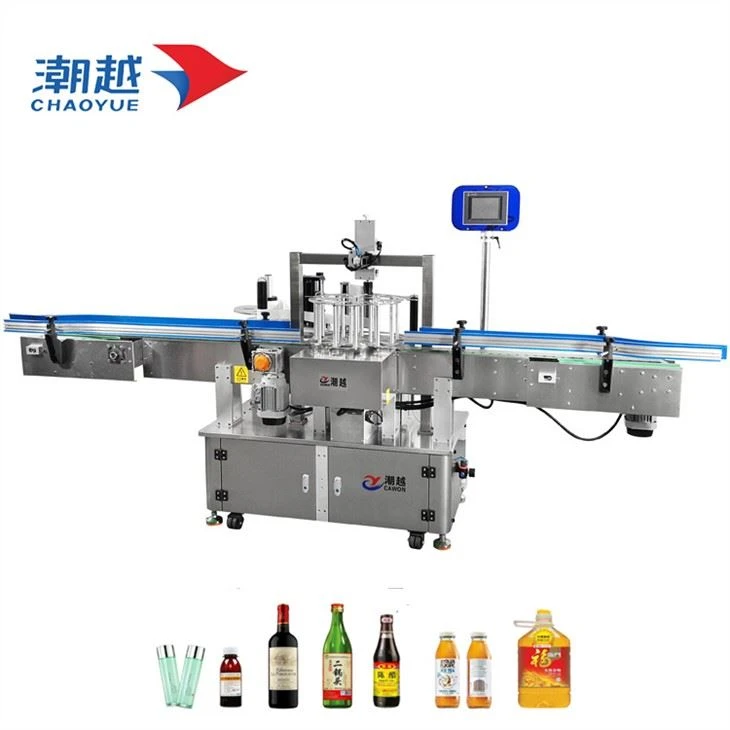

Lub raj mis Labelers Applicators
Lub hnub qub log hom lub raj mis labelers applicators , 8- chaw nres tsheb loj turntable rau lub raj mis noj thiab sib cais lub raj mis, kev kub ceev thiab ruaj khov. Yim-dimensional qhov chaw hloov kho ntawm header, muaj peev xwm hloov kho muaj zog thiab hloov tau yooj yim, qhov tseeb daim ntawv lo ntawm txhua yam khoom tuaj yeem hloov kho ob peb feeb. Nws yog qhov tsim nyog rau lub raj mis puag ncig hauv cov tshuaj txhua hnub, dej haus, tshuaj thiab lwm yam lag luam, thiab muaj ntau yam kev siv.
Tom qab 10 xyoo ntawm kev ua kom zoo, peb tau siv PLC qhov kev pab cuam hloov tshiab ntau zaus, kev ua haujlwm yooj yim, tag nrho cov kev ntsuas tau hloov mus rau millimeters thiab milliseconds, thiab cov kws tshaj lij tuaj yeem ua haujlwm sai thiab ua haujlwm tau zoo.
Labeling precision: | ± 1 hli |
Label max dav: | 200 hli |
Label max ntev: | 500 hli |
Lub raj mis min diameter: | 30 hli |
Lub raj mis max diameter: | 80mm (Ntau tshaj qhov nqi no yuav tsum tau kho) |
Lub raj mis min qhov siab: | 30 hli |
Lub raj mis max qhov siab: | 360mm (Ntau tshaj qhov nqi no yuav tsum tau kho) |
Label puab diam: | f76mm ua |
Label sab nraud diameter: | Φ380 hli |
Daim ntawv loj: | L3048 W1350 H1700 (mm) |
Kev siv lub zog: | 220V 50Hz 1500W |
1. HMI
2. Lub hnub qub log puag ncig lub raj mis mechanism
3. labeling header
4. Cov kab sib kis
5. Chassis
1.Txhua yam khoom siv, suav nrog chassis, conveyor kab, thiab lwm yam yog ua los ntawm stainless hlau thiab aluminium alloy cov ntaub ntawv, tsis txhob xeb, tsis muaj kuab paug, kom ua raws li GMP ib puag ncig tiv thaiv cov cai.
2.Siv lub npe nrov thoob ntiaj teb cov khoom siv hluav taws xob, cov khoom siv muaj lub neej ua haujlwm ntev thiab siab tshaj qhov tseeb
3.Lub tshuab yog ua los ntawm 304 stainless hlau thiab yuav tsis xeb
Tom qab 10 xyoo ntawm kev ua kom zoo, peb tau siv PLC qhov kev pab cuam hloov tshiab ntau zaus, kev ua haujlwm yooj yim, tag nrho cov kev ntsuas tau hloov mus rau millimeters thiab milliseconds, thiab cov kws tshaj lij tuaj yeem ua haujlwm sai thiab ua haujlwm tau zoo.
